    Single Spin Mask Cleaner

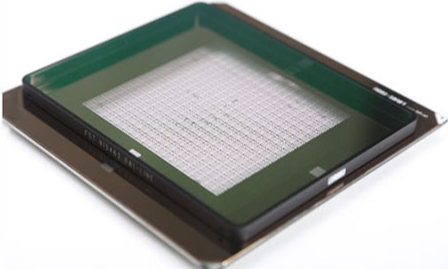

    This equipment is suitable for the cleaning of 6", 7", 9" masks used in the industry.
    It is equipped with multiple precision filtration systems, effectively ensuring cleanliness levels that meet process requirements of Class 10/100.
    The ion air blowing process can achieve 360° cleaning, ensuring high precision cleaning requirements for the process.
    It supports the main communication protocols of EAP/MES/AMHS, and supports SECS/GEM200/300 for device connection with OHT/PGV/AGV equipment to meet SEMIS2 and CE semiconductor manufacturing standards and certification.
    Single Spin Mask Cleaner
    产品特点
    01
    Sealed independent cleaning cavity, better cleaning effect, higher cleanliness.
    02
    Automatic Load Port and mainstream E84 sensor, docking OHT overhead crane, stable and efficient.
    03
    Each chamber can be controlled independently and run without interference.
    应用范围
    技术参数
    Equipment Dimensions
    2560mm(L)×2440mm(W)×1890mm(H)
    JIg Type
    Multiple edge gripper
    Main axis' spin speed
    0~1500RPM
    Spin Method
    Forward / Backward
    Noise
    <75dB
    Mask size
    6” ,7“,9” Mask
    Net Weight
    1500Kg
    WPH
    15pcs/Chamber (6" Mask)
    Power Supply
    3Phase AC380V 50Hz
    Material
    Structure:SUS304; Pipe:PFA
